IP REMOTE MICROPHONE

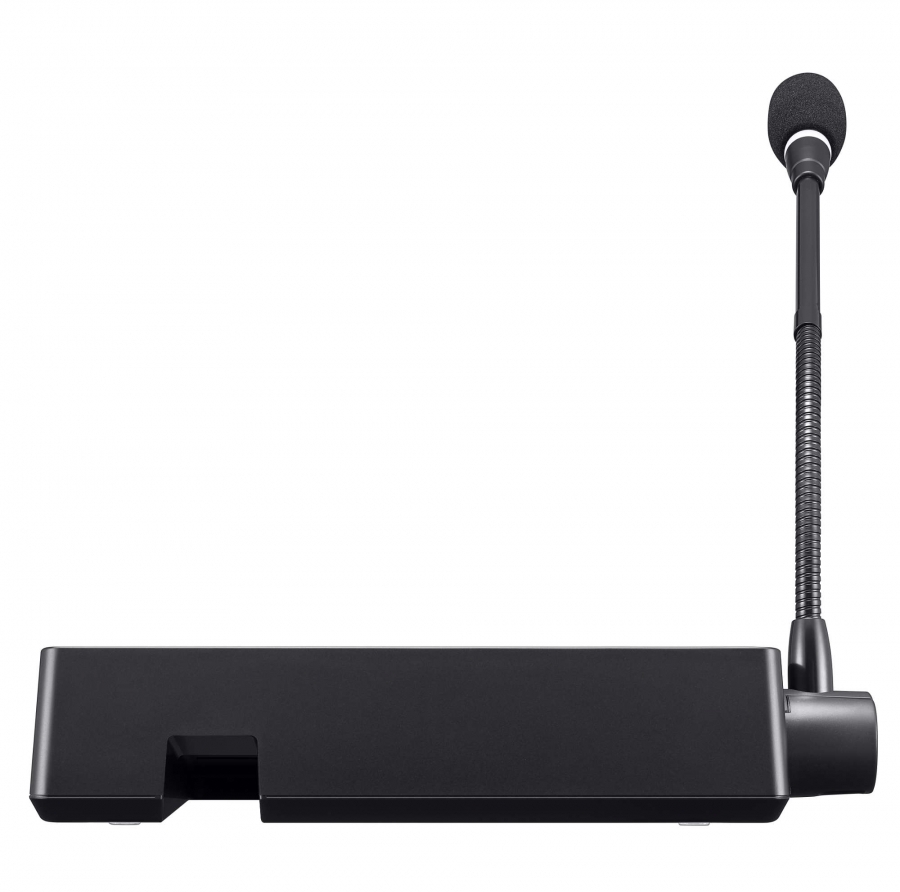

IP Remote Microphone

IP Paging Has Never Been This Easy

Plug & Page: The IP-A1RM IP remote microphone is the ideal gateway for the operator to your IP paging solution. It provides an LCD with up to 50 virtual buttons. Call single devices, perform group paging, transmit prerecorded messages, and control the system via network commands. The communication to other devices is performed via the network using open protocols to break the system design limits your network solution.

One-the-fly user settings: A variety of settings can be executed manually by the user. Choose your broadcast destination and switch between different audio sources as you like. You spontaniously want to activate or deactivate the chime? You want to pre-listen the stored audio files before the broadcast? A button push is all you need.

Comfortable recording: You are still insecure in performing broadcast to the puplic, or you do not want to speak the same announcement again and again? Just record your announcement via the microphone, check it, repeat it if required, and then send it into the zones as often as you like.

Easy-to-use scheduler: By accessing the web interface, endusers can create flexible time schedules according to their personal requirements. The intuitive layout and quick control leave nothing to be desired.

  • Gooseneck microphone with LED indicator
  • LCD with 50 virtual keys
  • Paging via SIP or multicast
  • API for HTTP command reception
  • Transmission of entire sets of HTTP commands
  • Scheduler function
  • Storage for prerecorded and manually recorded messages
  • System mute function to mute all IP-A1 series devices in the network
  • 1 AUX audio input (line/mic) for local audio sources
  • 2 control inputs and 1 control output
  • PoE-powered

 Specifications for product:

 IP-A1RM
Power / current consumption

3.5 W

Microphone type

Electret condenser microphone with indicator LED

Directivity

Unidirectional

Network I/F

1x 100BASE-TX (RJ45)

Network protocol

TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, NTP, SIP (RFC3261)

Audio input

1x AUX (line/mic, unbalanced, mini jack)

Control input

2x no-voltage make contact (terminal block)
1x mute control (24 V, terminal block)

Control output

1x open collector (terminal block)

Display

3" LCD (255 x 160) with backlight

Operating temperature

0 °C to +40 °C

Finish

ABS resin, black

Dimensions

224 x 47.2 x 136 mm (W x H x D)

Weight

630 g

Power source

PoE (IEEE802.3af Class 3)
